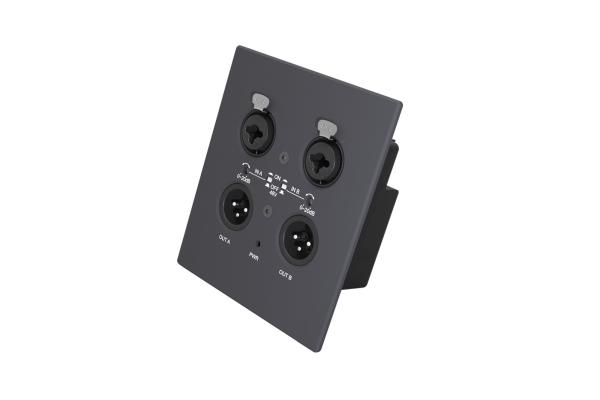

PoE power supply Dante 2 in 2 out Transmitter wall plate 2CH Dante
audio Interface
| This product provides a signal connection between analog input and
output and Dante channel, requiring PoE network power supply.
DP22 supports two sets of balanced I/O analog signals to connect to
Dante system through local area network. The input interface use a two-in-one XLR to provide phantom power
switch and gain adjustment function of input signal. The output
interface is standard 3 Pin XLR , output balanced analog signal.
|
|
Main Features:
- Dante 2X2 wall panel for conversion between analog audio signal and
Dante digital audio signal.
- This device supports 2-channel analog input and 2-channel analog
output.
- This device supports 2 channels Dante input and 2 channels Dante
output.
- This device supports conversion of analog input to Dante digital
audio; Supports Dante digital audio to analog audio output.
- Each channel analog input, with phantom power supply switch, gain
manual adjustment knob.
- POE mode power supply, compatible with 802.3af, 802.3at standard
POE switches.
- Front panel independent power indicator
Specification:
| Product Model No. | DP22 | | Analog input channel | 2 | | Analog output channel | 2 | | Dante input channel | 2 | | Dante output channel | 2 | | Dante interface | 1 | | Input gain amplification | Rotary gain knob (0 ~ 20dB) | | Balanced/non-balanced, input/output support | √ | | MICLINE, input/output support | √ | | 48V phantom power switch | √ | | Sampling rate | 48kHz | | Phantom power | 48V | | Frequency Response (20~20KHz) | 20Hz ～ 20K Hz,±0.5dB | | THD+N | ≦0.005% @4dBu | | Digital-analog dynamic range (A weighting) | 120dB | | Analog - digital dynamic range (A weighting) | 114dB | | Input impedance (balanced) | 20kΩ | | Output impedance (balanced) | 100Ω | | EIN(A weighting) | ≤-131 dBu | | Channel isolation @1kHz | 100dB @1k Hz,4dBu | | Simulated maximum gain | 20dB | | Common-mode rejection | 80dB @80 Hz | | Maximum input level | 18dBu | | Maximum output level | 18dBu | | Ground Noise | -90dBu | | System delay | ≤3ms | | Working Power Supply | PoE 48V | | Operating temperature | '-10-50℃ | | Size | 87*97*46(mm) |
|
