Simple audio routing network digital signal Transmission 2CH bluetooth Dante wall plate
Products Description:

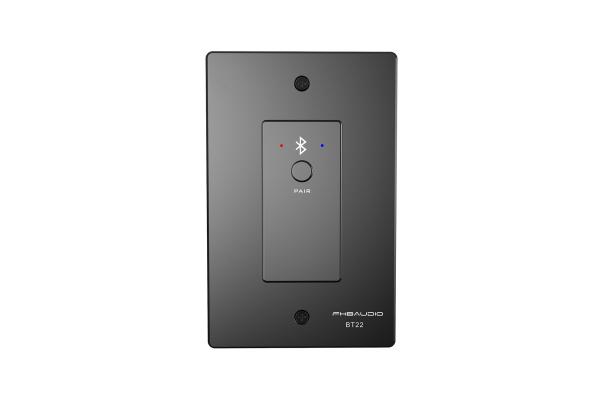

BT22 is a two-way stereo transmission panel for Bluetooth and
Dante.It uses PoE power supply and wall installation.
BT22 connects to mobile phones, ipad and other devices through
Bluetooth interface, and converts the received audio signal into
network digital signal transmission through Dante.Power, control,
and audio data are transmitted by network cables, and there is no
need to worry about ground loops or other audio issues.The main
applications are teleconferencing, audio media transmission and so
on.
Main Features:
- Easy to use, you can control Bluetooth pairing with one button,
connect the device, and display the connection status through LED
light.
- Good compatibility, it can be compatible with most smart phones,
Apple ipad and Android tablet, etc.
- Power supply and audio transmission integrated, adopt PoE power
supply, audio transmission through network cable
- Simple audio routing, configure audio routing through Dante
Controller.
Specification:
| Model No. | BT22 | Bluetooth interface(MPT-III) | Bluetooth 5.0, Stereo I/O |
| Dante interface | RJ45 interface, stereo input/output | Frequency response | 20Hz-20kHz |
| Sampling rate | 48kHz 24bit | Floor noise | -90dB |
| Power consumption | 2W | THD | <0.005% |
| Temperature | -10℃ ~ +40℃ | Humidity | 5%-95% |
| Size | 123.5mm×79mm×35mm | Weight | 156g |
System View:
Company Introduction:
FHB Audio was established in 2018,who is a technology-based
enterprise integrating design, research and development,
production, sales, and service, specializing in the production of
digital signal processor, digital conference system, Dante products
line, microphones, Digital Mixer, power amplifier etc., also can
provide customers with a series of according to their requirements,
mainly for conference, education, hotels and other application.
The company has strong R&D technical strength and advanced
production equipment, and has a complete product quality control
system. From raw material input to cost delivery, all links are
tested and quality tracked, so as to ensure reliable and stable
quality.
Through unremitting efforts, the scale of FHB has continued to
expand, and our company has gathered a group of high-quality,
first-class audio technology professionals. So far, our team has
more than 100 employees, the product line has increased to 3, and
the business is sold all over the world. and have obtained CE, ROHS
certificates.
FHB always adheres to the business tenet of "honesty-based", and
pursues excellent quality, and constantly improves product quality
and after-sales service system to achieve a win-win situation.
Check Products one by one, to make sure all products are working
excellent quality..
