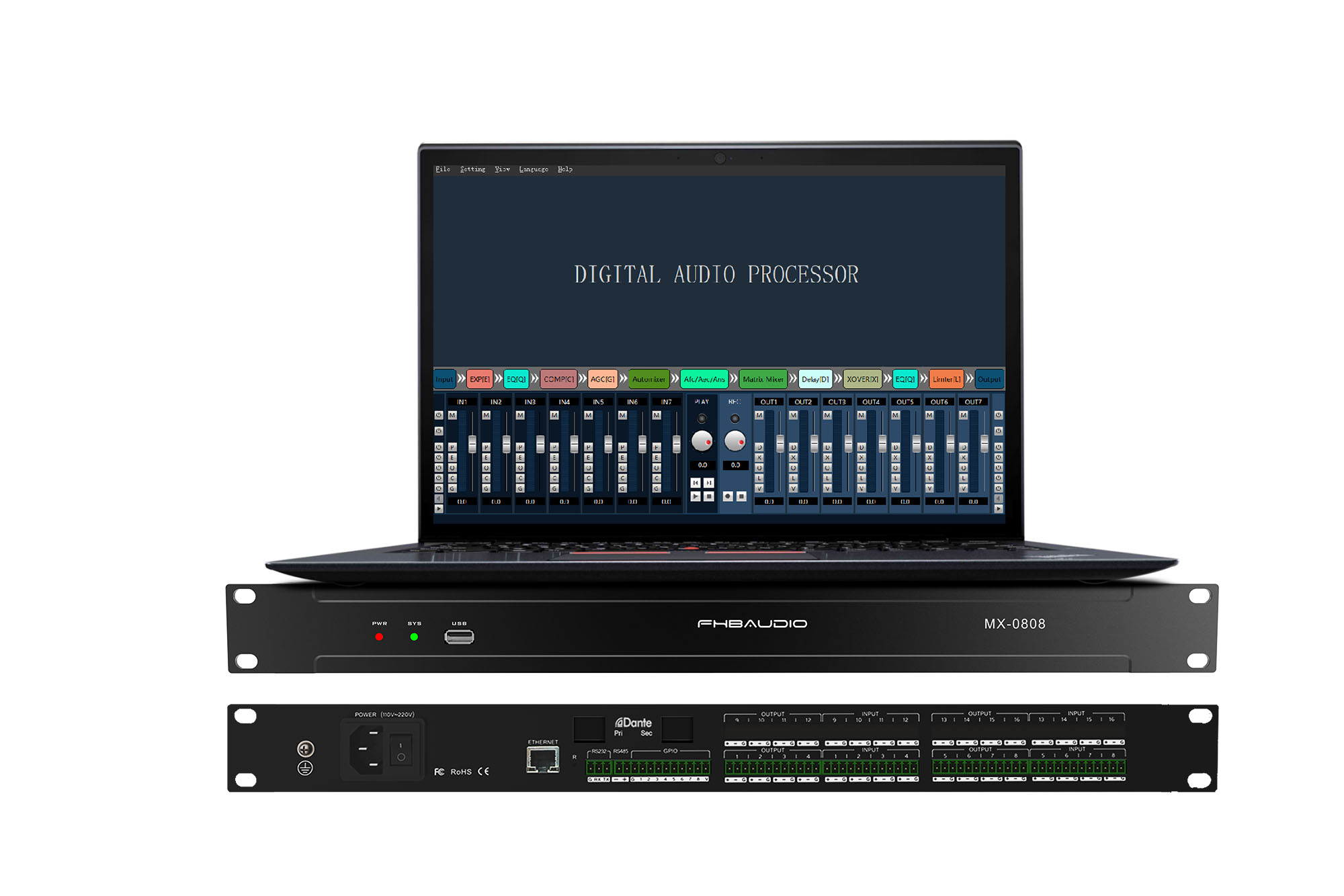

Professional 8CH AEC Digital Signal Processor DSP For Zoom Cenference With USB Sound Card

Main Features:

• Professional audio processor support 8way analog input and output a,It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
• Processor :ADI SHARC 21489@450 MHz SIMD;
• DSP processing capacity :400 MIPS, 1.6 GFLOPS;
• Provide 8 devices for online operation at the same time;
• Built-in one in one out USB sound card, support music playback, recording and soft video conference (such as: ZOOM, Tencent conference, Dingding conference, etc.);
• Bus type AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;
• Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB;
• Noise suppression (ANS), signal-to-noise ratio increased by 18dB
• Dodge device (Ducker);
• Noise gain compensator (ANC)
• Gain sharing automatic mixing (AMC), Gate Mixer;
• 12 period of British equilibrium parameter, provides 5 kinds of filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
• Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
• Support camera tracking;
• With 8-way GPIO;
• With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions.
• 1U Whole aluminum chassis

Specification:

Software:

Other Hot Products Recommend:

• USB Background music playback and recording function
• Support mobile phone, tablet control and distributed cloud control
• DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
• Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
• Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
• Full function matrix remix
• Built-in automatic camera tracking function
• Support for scenario presets；
• Automatic memory protection when power off
• 1U Whole aluminum chassis

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days
