professional sound system 16in 16out AFS digital audio marix
processor
Main Features:
- Suitable for meeting room, campus, art performance, concert and
other scene areas
- Provide PC software and web control
- System built-in lock screen function, can effectively avoid the
wrong operation.
- DSP audio processing, built-in automatic mixer, feedback
elimination(AFS),AGC function
- Input per channel: Front stage amplifier, signal generator,
expander, compressor, 5 stage parameter equalization
- Output per channel:31 Section diagram equalizer, delay device,
frequency divider, limiter
- Full function matrix remix
- Built-in automatic camera tracking function
- Support for scenario presets；
- Automatic memory protection when power off
- 1U Whole aluminum chassis

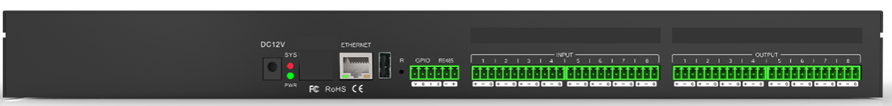

Products Overview:
(1) DC12V: DC12V /2A power input interface;
(2) PWR: power indicator light, which means the power supply of the
equipment is normal; otherwise, the power supply is abnormal;
(3) SYS: Status indicator light. The flashing light indicates
normal operation of the device; otherwise, the device fails;
(4) ETHERNET: 10M/100M ETHERNET interface;
(5) RESET: RESET to factory setting, long press for 5 seconds.
(6) RS232: Support central control command and camera tracking,RX:
receive data,TX: send data,G: ground wire;
(7) RS485: Supporting camera tracking;
(8) GPIO: GPIO control;
(8) OUTPUT: Analog Output;
(9) INPUT: Analog Input
Specification:
| DSP Chip | Dual Core Ti 450MHz FLOPS | Input Processing | Pre-amplifier, signal generator, extender, compressor, 5-segment
parameter equalization, inversion, automatic gain, automatic mixing |
| Output Processing | Segment 31 shows equalizer, delay device, frequency divider,
limiter, and inverting | Matrix Mixing | Input and output signal matrix mixing, mixing component control |
| Automatic camera tracking function | Support | Scene preset | 100 groups of custom Settings |
| Sampling | 48KHz | phantom power | 48V |
| Frequency response | 20 - 20K Hz,±0.2dB | THD+N | ≦0.004% @4dBu |
| Digital to analog dynamic range (A Weighted) | 120dB | Analog to Digital dynamic range (A Weighted) | 114dB |
| Input Impedance (Balanced) | 20kΩ | Output impedance (Balanced) | 100Ω |
| EIN(A Weighted) | ≤-120 dBu | Channel isolation | 104dB @1k Hz |
| Common mode rejection | 70dB @80 Hz | Maximum input level | 18dBu |
| Maximum output level | 18dBu | Floor Noise | -90dBu |
| Working Power | DC12V/2A | Size | 482*258*45(mm)； |
| I/O |
| Model No. | MX-0808-C | MX-0808D-C | MX-1616-C |
| No. of analog input | 8 | 8 | 16 |
| No. of analog output | 8 | 8 | 16 |
| No. of Dante input | × | 4 | × |
| No. of Dante output | × | 4 | × |
| Ethernet | 1 | 1 | 1 |
| RS485 | 1 | 1 | 1 |
| GPIO | 2 | 2 | 2 |
| Input gain amplification | -24～18dB,6dB,Total 7 level |
| Balanced/non-balanced, | Support |
| MICLINE | Support |
| Each independent 48V phantom power supply | Support |
| DSP Processing |
| AFC | √ | √ | √ |
| AEC | × | × | × |
| ANC | × | × | × |
| AM | √ | √ | √ |
| AGC | √ | √ | √ |
| PC Software |
| PC Software | Support |
| Windows32位 | Support |
| Windows64位 | Support |
| client-side | Built-in client, support online download |
Software:
- Our designed PC version control software is the best tool for you
to monitor and operate the digital audio processor, which can be
used to edit and store scenes (such as meeting mode, artistic
performance mode, concert mode, etc.) according to the acoustic
characteristics of different functions. The system built-in lock
screen function, It can effectively avoid the occurrence of wrong
operation.
Check Products one by one, to make sure all products are working
excellent quality..
