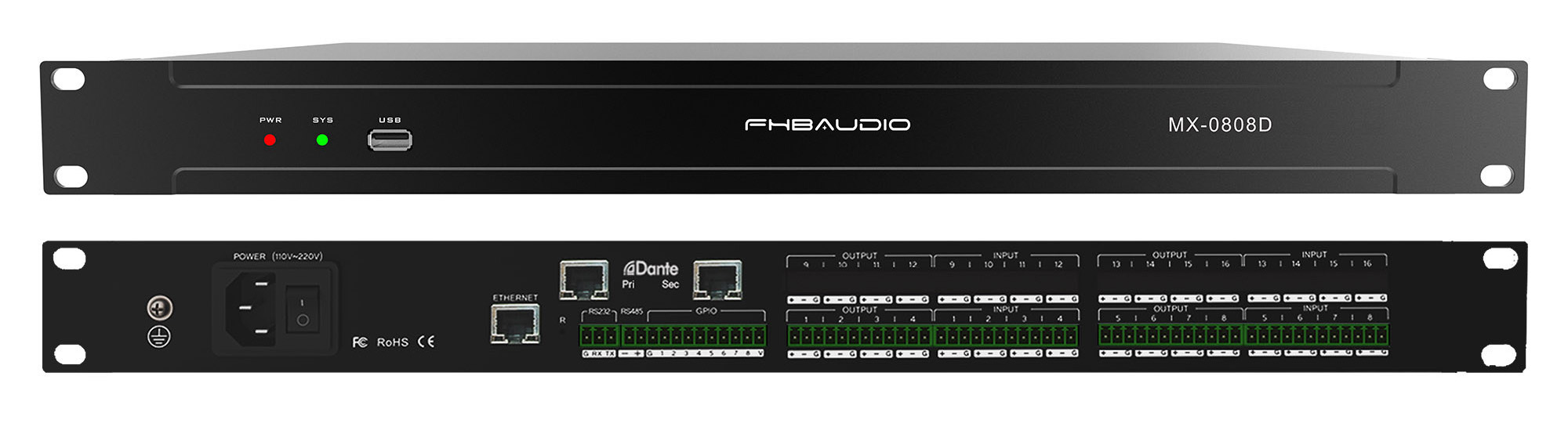

Custom Dante Digital Analog Audio Interface DSP Poe Module Matrix
Processor 8X8
Description:
The MX-0808D audio processor is a freely designed audio processing
and control system.It adopts advanced DSP processing technology,
has a new automatic mixing, Feedback elimination, etc, targeted to
solve various practical problems in the application scene.
 |
Main Features: - USB Background music playback and recording function
- Support mobile phone, tablet control and distributed cloud control
- DSP audio processing, built-in automatic mixer, feedback
elimination(AFC), echo elimination(AEC), noise elimination (ANC)
function
- Input per channel:Front stage amplifier, signal generator,
expander, compressor, 5 stage parameter equalization
- Output per channel:31 Section diagram equalizer, delay device,
frequency divider, limiter
- Full function matrix remix
- Built-in automatic camera tracking function
- Support for scenario presets；
- Automatic memory protection when power off
- 1U Whole aluminum chassis
- Built in Dante Module
|
Specification:
| Model No. | MX-0808D | | DSP Processing | Ti 456MHz FLOPS DSP | | Number of analog channels | 8 Input +8 Output | | Number of Dante channels | 8 Input +8 Output | | Core Algorithm | Automatic mixing, feedback elimination(AFC), echo elimination(AEC),
noise elimination(ANC) | | GPIO | 8 ( Including input and output) | | RS232/RS485 | 1 | | RJ45 control interface | 1 | | USB Port | 1 | | RJ11 phone interface | 0 | | DANTE network interface | 2 | | Simulated maximum gain | 51dB | | Digitalizing bit | 24bit | | Sampling Rate | 48k | | Frequency Response(20~20KHz) | ±0.2dB | | Analog-to-digital dynamic range (A-weighted) | 114dB | | Digital-to-analog dynamic range (A-weighted) | 120dB | | Input to output dynamic range | 108dB | | Total harmonic distortion + noise | ＜0.003% @1KHz ,4dBu | | Floor noise (A- weighted) | -90dBu | | Delay storage | 2s | | Analog input to output system delay | 3ms | | Input impedance (balance -type) | 20KΩ | | Output impedance (balance -type) | 100Ω | | Maximum Input
Level | +18dBu,balance | | Maximum Output Level | +18dBu,balance | | Equivalent input noise EIN(20-20kHz,A-weighted). | ≤-131dBU | | Phantom power (per input) | 48V | | Input common mode rejection,60Hz | 70dB | | Channel Isolation,1kHz | 104dB | | Dimensions (W*D*H) | 482*258*45(mm) | | Weight | 3Kg | | Power Consumption | <40W | | Operating
Temperature | -10 - 50℃ | | Working Power
Supply | AC110V-220V,50Hz/60Hz |
|
Advantages:
1.Company Innovative
FHB Audio is driven by innovation. We are continuously developing
new technologies that provide time saving methods that benefit you
and our dealer network. Our innovative solutions focus on everyday
use cases and how our products can cut down installation times,
reduce maintenance requirements, increase productivity, and provide
you long-lasting reliability.
2.Wide & Deep Products Line
We provide over 200 audio & Video products, as well as a series of
Dante products, such as Digital Signal processor, Digital
microphone system,Dante signal processor, 2CH Dante AVUO,2CH Dante
wall plate,4CH Dante box., Dante Bluetooth panel, Dante microphone,
and Dante speaker etc…
Our industry-leading support team makes it easy for you to choose
the right product and provide the right system solutions.
3.Professional & Fast Service,
24 hours online services to provide suggestions and solutions for
customer.
After-Sales Technical Support /Product Maintenance
Wiring/Installation/Debugging Instruction
4.OEM/ODM Solutions
Professional System Designers to assist in product selection and
system design to meet your specific needs.
